5.8m Scissor lift
5.8m Scissor lift
If you need to work indoors at height or outdoors on level ground, an Electric Scissor lift is the machine for you. Scissor lifts are compact to enable you to access tight areas around boat yards or to manoeuvre around other machinery.
Battery power ensures there are no diesel fumes & minimal noise. Plus they have a tight turning circle perfect for a tight boat yard where driving around hulls gets very tricky.
Additional versatility is provided via varying deck width options plus a rollout deck extension that provides extra reach over objects. The 3, 4 & 6-metre Electric Scissor lift can be loaded onto a trailer and towed by a suitable vehicle.
Make :Various
Model :Various
Working height :9.75 - 9.92m
Platform height :7.75 - 7.92mS
afe working load :227 - 230kg
Safe working load (extension) :113 - 120kg
Platform width :0.76 - 0.81m
Platform length :2.26 - 2.3m
Platform length (extension) :3.18 - 3.2m
Stowed width :0.81mStowed length :2.30 - 2.44m
Stowed height :2.26 - 2.33m
Weight :1956 - 2145kg
Gradeability :25%
Ground clearance :0.09m
SCISSORLIFT 7.7M (26FT) ELECTRIC
A self-propelled, battery powered elevating work platform used on level paving for working efficiently and safely above ground. This scissor lift has features such as smooth controls, proportional drive, lift and lower, long battery duty cycles, drive at full elevation for 16 hours and fold-down rails allows drive through standard 203cm door height
SCISSOR LIFTS are used for application where more workspace and more lifting capacity are required. They are designed to provide larger platform work areas and generally allow for heavier loads than boom lifts. Scissor lifts may be manoeuvred in a manner similar to boom lifts, but the platform may be used only vertically, except for standard roll-out deck extensions that extend horizontally.
We have scissor lifts available in various widths and platform heights. Electric scissors are best suited to working on smooth and level surfaces such as concrete floors. A great choice when polishing hulls on an open asphalt boat yard in Auckland.

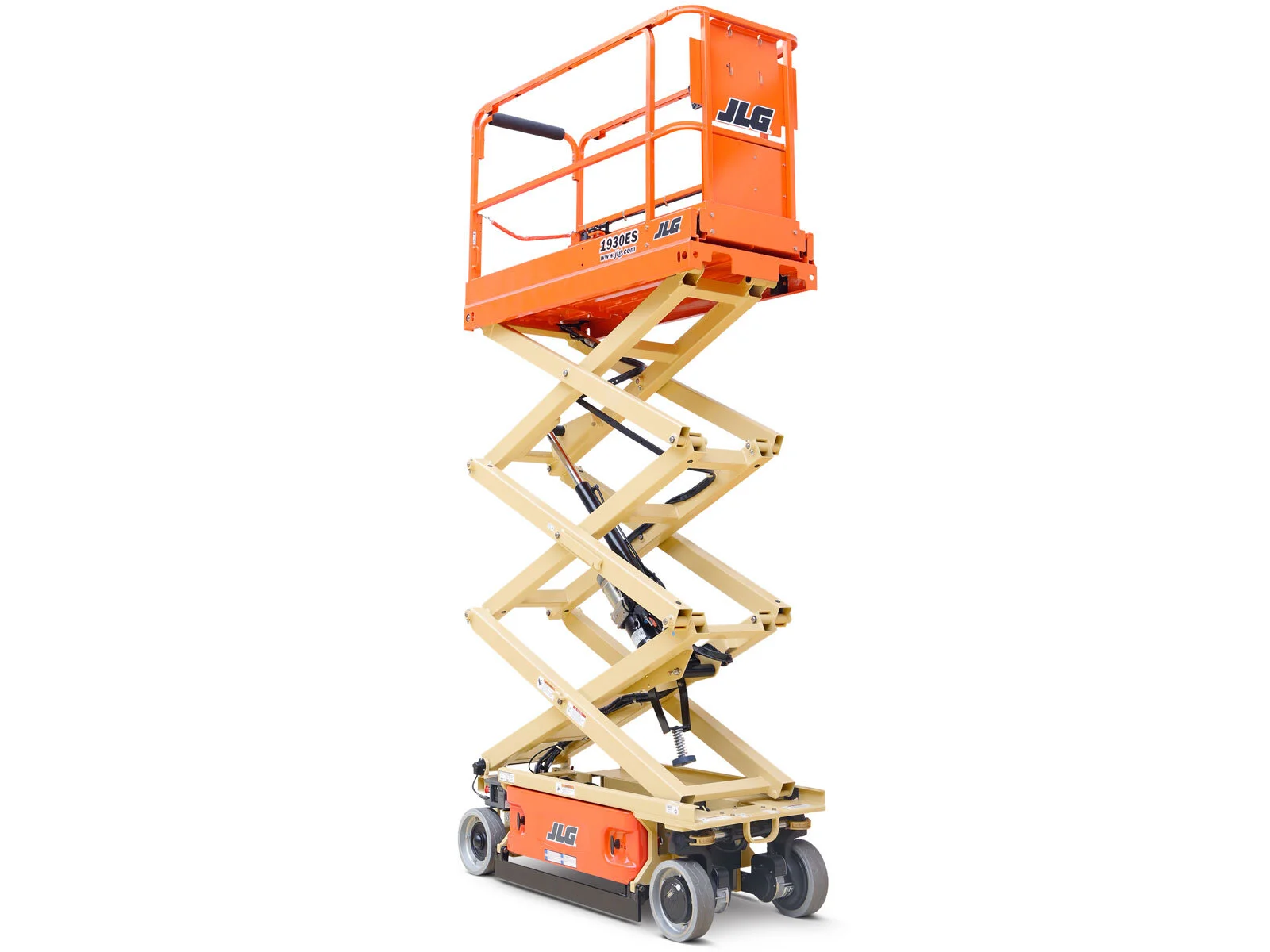

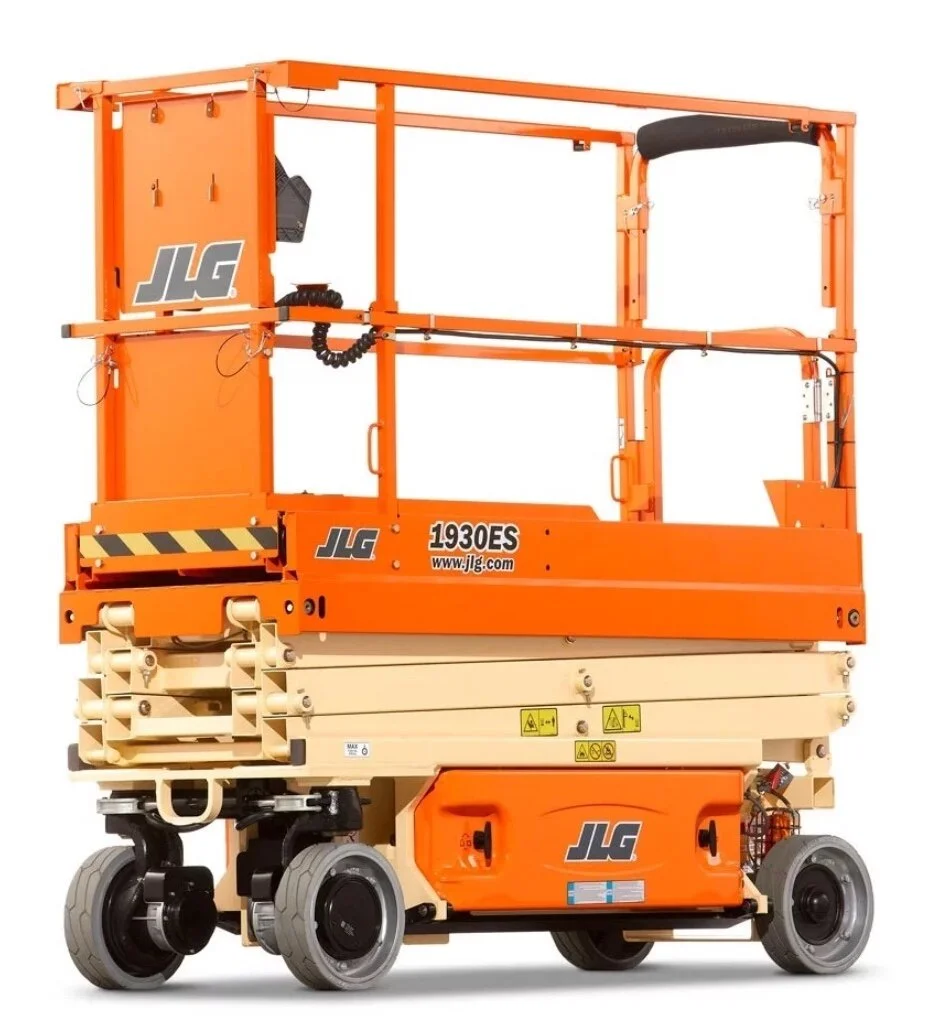

An electric scissor lift that can be trailerised, the JLG 1930ES is compact, easily fitting through a standard internal doorway or small gaps between cradles on boat yards. It has a working height reach of 7.8 metres. It is a very manoeuvrable machine for smaller spaces and is a popular machine, catering for a wide range of smaller access requirements.
TECNICAL SPECIFICATIONS
Power SourceBatteries: 4 x 6V, 220 A-h
Charger: 20 A automatic
General SpecificationsBrakes: Electric, Friction
Capacity - Hydraulic Reservoir: 4.73 L / 1.2 gal.
Hydraulic Pump: Fixed Displacement Gear
Machine Weight: 1506 kg / 3320.2 lb
Performance DataTurning Radius - Inside0 m / 0 ft
Drive Speed - Platform Elevated: 0.80 km/h / 0.5 mph
Drive Speed - Platform Lowered: 4.80 km/h / 3 mph
Drive System: 24V Electric
Gradeability: 25 %
Lift Time: 20 sec.
Lower Time: 30 sec.
Maximum Drive Height: 5.72 m / 18.8 ft
Maximum Lift Height: 5.72 m / 18.8 ft
Platform Capacity - Extension: 120 kg / 264.6 lb
Platform Capacity - Unrestricted: 230 kg / 507.1 lb
Turning Radius - Outside: 1.75 m / 5.7 ft
Dimensional DataGround Clearance: 0.09 m / 4 in.
Machine Height: 2.02 m / 6.6 ft
Machine Height - Rails Folded: 1.59 m / 5.2 ft
Machine Length: 1.87 m / 6.1 ft
Machine Width: 0.76 m / 2.5 ft
Platform Dimension A: 0.76 m / 2.5 ft
Platform Dimension B: 1.87 m / 6.1 ft
Platform Extension Length: 0.90 m / 3 ft
Platform Height: 5.72 m / 18.8 ft
Platform Height - Lowered: 0.89 m / 2.9 ft
Platform Railing Height: 1.10 m / 3.6 ft
Tyre Size: 32 x 10 cm
Wheelbase: 1.60 m / 5.2 ft
Reach SpecificationsPlatform Height: 5.72 m / 18.8 ft
Working Height: 7.72 m / 25.3 ft
